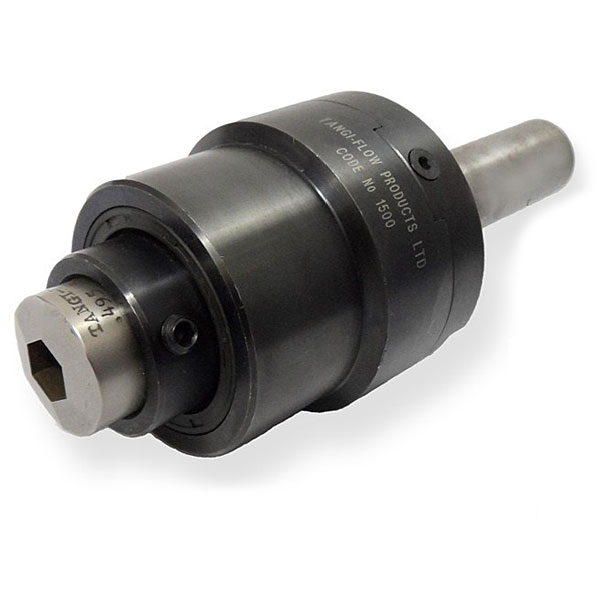

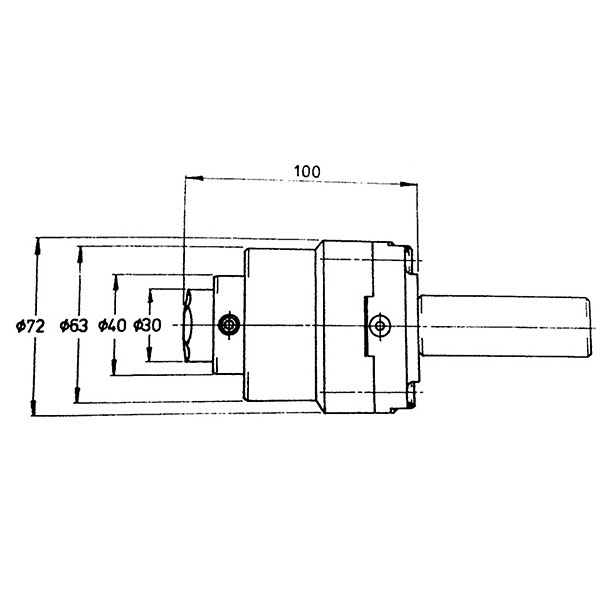

The external broaching head has been developed to produce hexagon and square forms and turned parts during the turning cycle on capstans, autos, CNC lathes, etc.

To produce a form, pre-turn a diameter to the across corner dimension, keep spindle rotating, index to tool station with external broaching head, advance tool, the cutting bit wil start to revolve when picked up and driven by the turned part, advance to depth and retract.

The external broaching head compliments the internal head and is available with various shank diameters including VDI.

Capacity

  • Metric: 3mm – 16mm
  • Imperial: 1/8″ – 5/8″ A/F HEX

Shank Diameter

  • Metric: 20mm, 25mm, 32mm
  • Imperial: 3/4″, 1″, 1 1/4″

Bearing Repair Kit

  • 1500K

BH1500 repair kit
