Broaching Head 1600

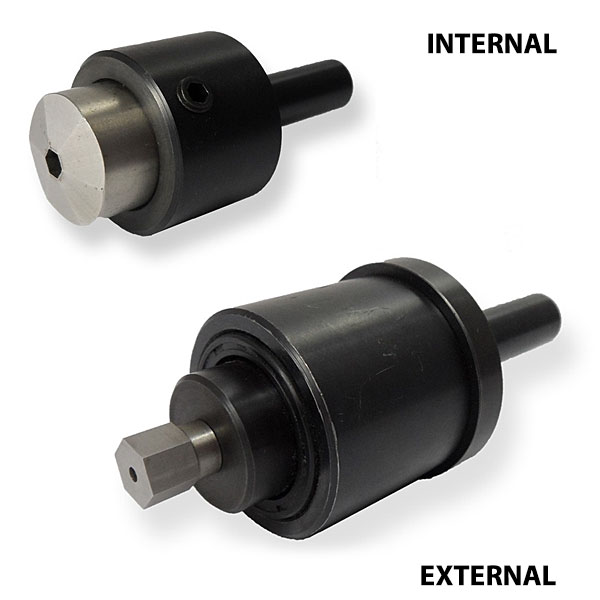

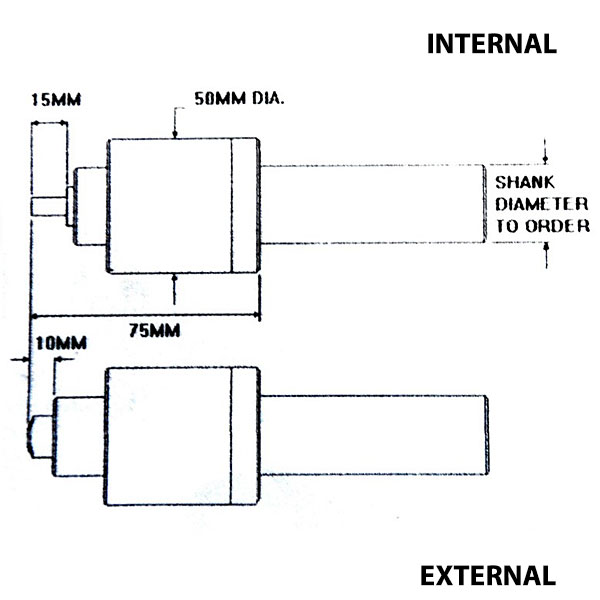

The universal model offers the versatility of being both an internal and external head, easily converted from one to the other with the exchange of operating shafts code 1602 and 1612.

Various shank sizes available:

  • Metric: 16 – 20 – 25
  • Imperial: 5/8″ – 3/4″ – 1″

Capacity

  • Internal: 1.5mm – 10mm
  • External: 2mm – 14mm A/F HEX

Shank Diameter

  • Metric: 20mm, 25mm, 32mm
  • Imperial: 3/4″, 1″, 1 1/4″
Download Data Sheet & Bearing Info
SKU: BH1600 Category:
