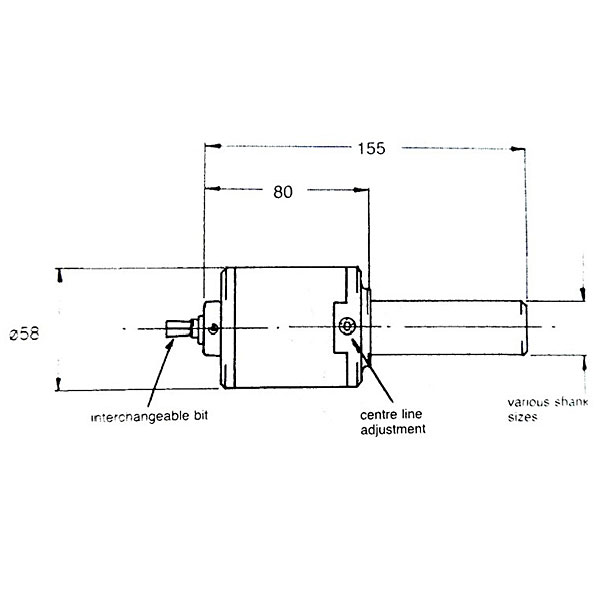

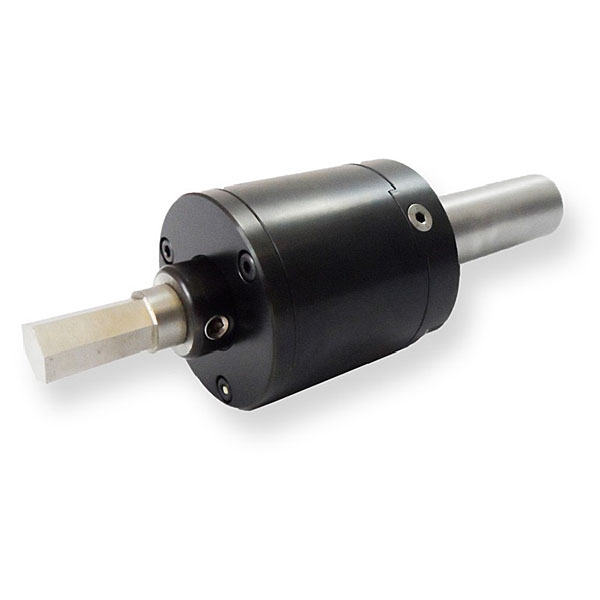

A broaching head designed primarily for producing hexagonal holes. A micro screw is provided to set the cutting bit on the machine centre line. The inner shaft is mounted on sealed ball races for precision and long life.

Diameter broach shank: 8mm / 5/16″

Capacity

  • Metric: 2mm – 10mm
  • Imperial: 5/64″ – 3/8″

Shank Diameter

  • Metric: 16mm, 20mm, 22mm, 25mm, 32mm, 40mm, 50mm
  • Imperial: 5/8″, 3/4″, 1″, 1 1/4″, 1 1/2″, 1 3/4″, 2″
    2MT, 3MT

Bearing Repair Kit

  • 275K

BH275 repair kit
