Additional Information

Insert Number: TA525, TA3504, (available in CB & POS)

Tip Holder: TA400M

Insert Screw: TA525S, TA500S

Pin: 130P

Roller Assembly: 130R

Carrier: 4001

Tool Block: TA4002

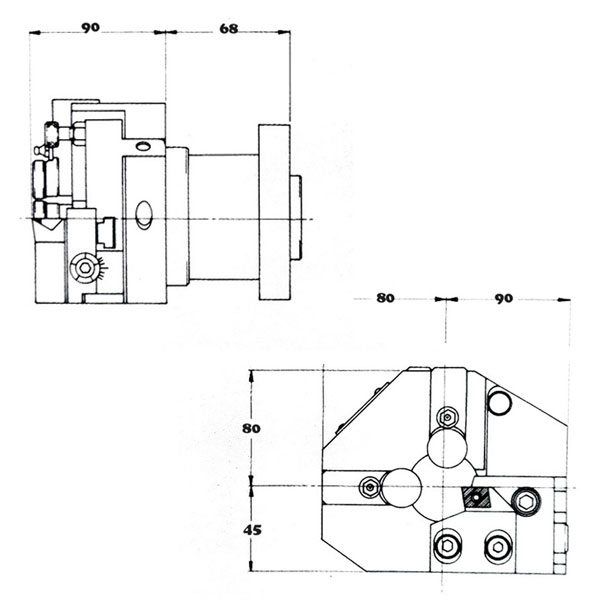

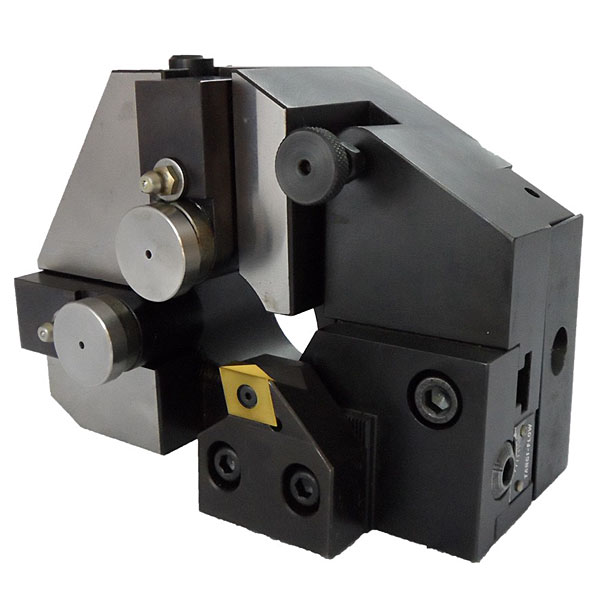

AR/T6 Roller Box

These auto-retract roller boxes are manufactured to a modular construction where the main body remains constant. Various back plates are available, not only to suit the recommendations shown. Back plates and shanks can be supplied to suit a wide variety of machines including CNC lathes, etc., including Wickman Type Centre Block Fitting.

The length of turn can also be modified to suit your requirements.
